In part 1 we implemented a simple Modbus TCP library and read a single sensor from the Sungrow inverter. Our next step is to parse the full list of registers so that we can read all the values of interest like real time solar production, battery state of charge, grid draw, etc.
YAML and JSON data Link to heading
As with the Go implementation we will lean on the good work of the Home Assistant developers who have published YAML data of the Sungrow inverter registers: modbus_sungrow.yaml
The structure of the file is a top level modbus section containing one hub with a list of sensors.
There are a lot of sensors in this file, so here’s a cut down sample showing just one, the solar DC power in Watts:
modbus:
- name: &sg_hub_name SungrowSHx
type: tcp
host: !secret sungrow_modbus_host_ip
port: !secret sungrow_modbus_port
delay: 15 # delay 5 second after connecting
timeout: 30 # timeout while waiting for a response before flodding the log with errors
message_wait_milliseconds: !secret sungrow_modbus_wait_milliseconds # delay between messages, depending on inverter connection
sensors:
- name: Total DC power
unique_id: sg_total_dc_power
device_address: !secret sungrow_modbus_device_address
address: 5016 # reg 5017
input_type: input
data_type: uint32
swap: word
precision: 0
unit_of_measurement: W
device_class: power
state_class: measurement
scale: 1
scan_interval: *scan_interval_fast
This tells us to look at address 5016 (0-indexed) for a 32-bit unsigned integer, with units W (Watts). At the time of writing I couldn’t find a Lean YAML library so I did a one-off conversion to JSON using a Python script.
The entry above becomes:
{
"modbus": [
{
"name": "SungrowSHx",
"type": "tcp",
"host": "sungrow_modbus_host_ip",
"port": "sungrow_modbus_port",
"delay": 15,
"timeout": 30,
"message_wait_milliseconds": "sungrow_modbus_wait_milliseconds",
"sensors": [
...
{
"name": "Total DC power",
"unique_id": "sg_total_dc_power",
"device_address": "sungrow_modbus_device_address",
"address": 5016,
"input_type": "input",
"data_type": "uint32",
"swap": "word",
"precision": 0,
"unit_of_measurement": "W",
"device_class": "power",
"state_class": "measurement",
"scale": 1,
"scan_interval": 10
},
...
]
}
]
}
These sensor entries map to a Lean structure. For related types see Registers.lean.
structure Sensor where
name : String
unique_id : String
/-- Zero-based wire address (one less than the "reg NNNN" in Sungrow's docs). -/
address : UInt16
input_type : InputType
data_type : DataType
/-- Register count, only for `string` sensors. -/
count : Option Nat := none
swap : Option Swap := none
/-- Multiplier applied to the raw value, e.g. `0.1`. Kept as an exact decimal. -/
scale : Option JsonNumber := none
/-- Decimal places Home Assistant displays. -/
precision : Option Nat := none
scan_interval : Option Nat := none
/-- Raw value the inverter reports when the reading is unavailable. -/
nan_value : Option Int := none
unit_of_measurement : Option String := none
device_class : Option String := none
state_class : Option String := none
deriving Repr, FromJsonA Hub is a name and a list of sensors (we ignore fields like type, host, port, delay, etc. since they are only relevant for Home Assistant):
structure Hub where
name : String
sensors : Array Sensor
deriving Repr, FromJsonAnd the top level object is Registers, a list of hubs. There happens to be just one Hub in this file.
structure Registers where
modbus : Array Hub
deriving Repr, FromJsonThe derived instances of FromJson make parsing the JSON file almost automatic (there are some hand-written instances for things like InputType, Swap, etc):
def Registers.parse (s : String) : Except String Registers :=
Json.parse s >>= fromJson?
def Registers.load (path : System.FilePath) : IO Registers := do
match Registers.parse (← IO.FS.readFile path) with
| .ok r => pure r
| .error e => throw <| IO.userError s!"{path}: {e}"The Lean syntax (← IO.FS.readFile path) tightens up the usual Haskell pattern
of running the monadic action and then matching on the result. I really like the
Lean style. The equivalent Haskell is just a bit more verbose.
load :: FilePath -> IO Registers
load path = do
s <- readFile path
case parse s of
Right r -> pure r
Left e -> throwIO (userError (path ++ ": " ++ e))
The JsonNumber type is convenient for capturing numbers and
avoiding floating point dramas, similar to how we might use Decimal in Python: json.loads(s, parse_float=Decimal)

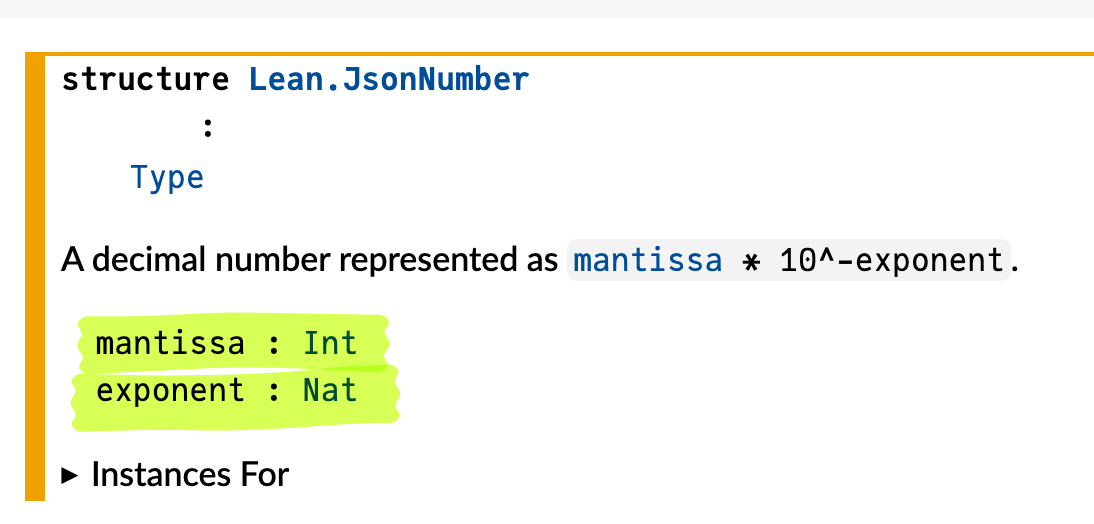

The documentation tells us that JsonNumber is a structure with two fields, mantissa and exponent:
The actual source:
/-- A decimal number represented as `mantissa * 10^-exponent`. -/
structure JsonNumber where
mantissa : Int
exponent : Nat
deriving DecidableEq, HashableThe Lean Info View is a convenient way to play around with values. It’s not quite a REPL, and not quite the same as a Lisp workspace.

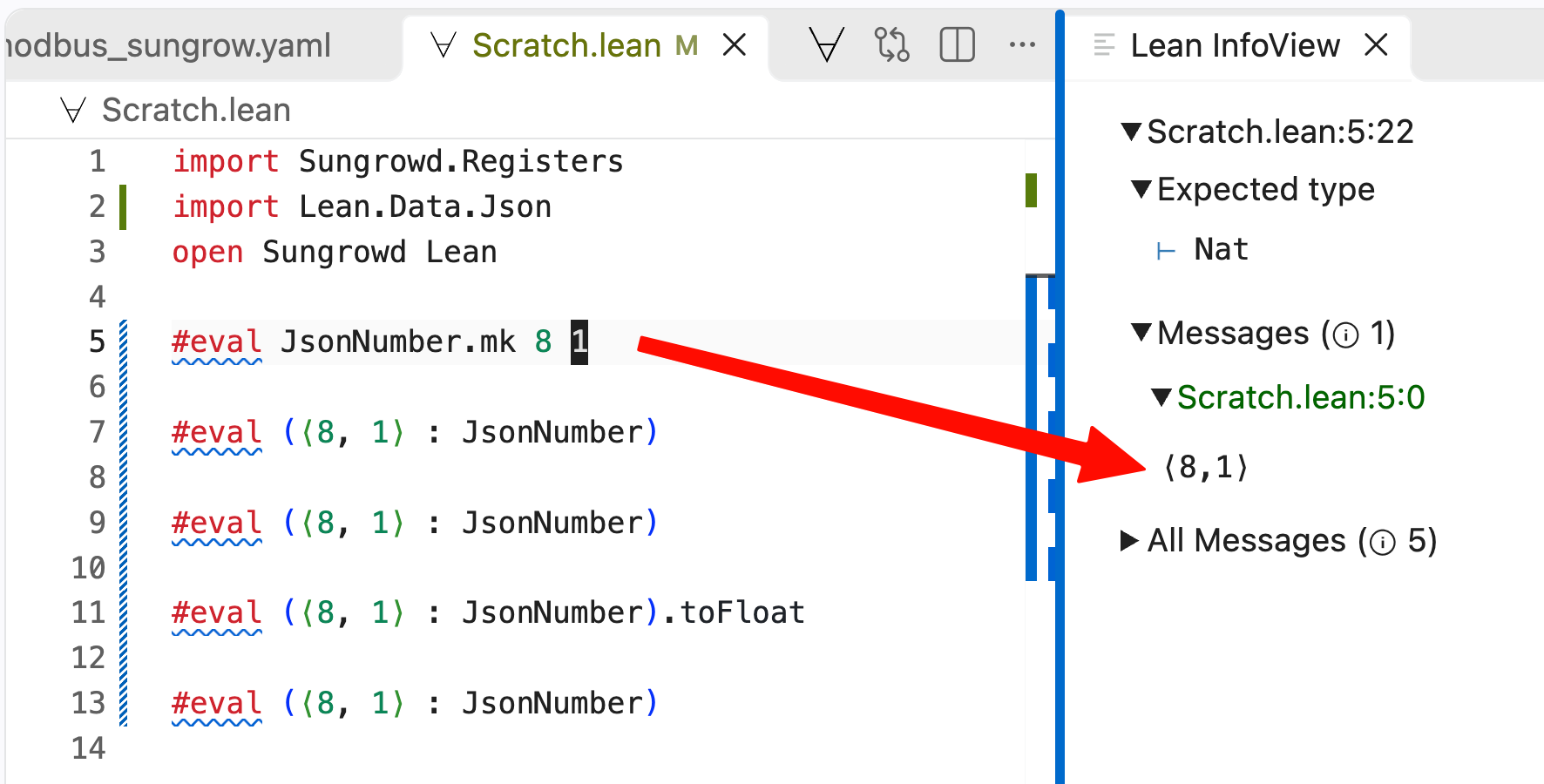

We could make a JsonNumber using the default mk constructor:
#eval JsonNumber.mk 8 1With #eval it immediately evaluates in the Info View:

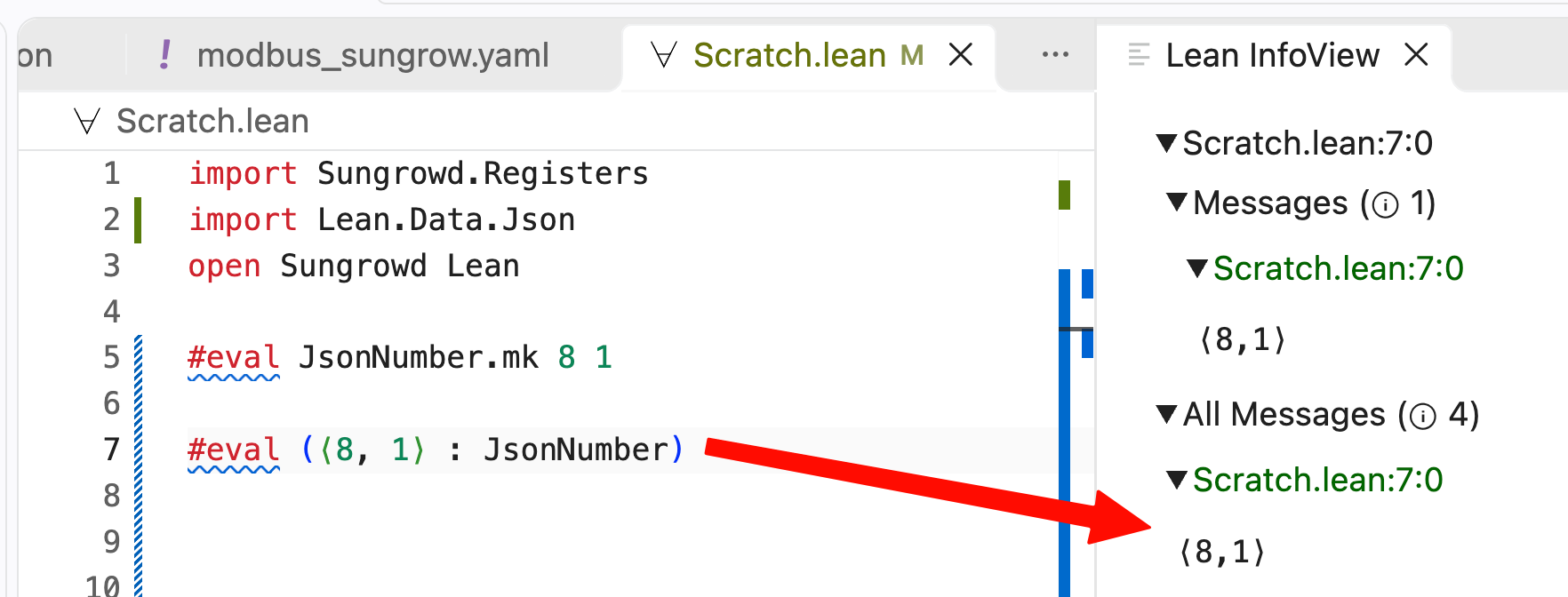

The anonymous constructor syntax lets us treat the
constructor as if it was a tuple. So we can create a value of something without having to name its constructor (the equivalent in Haskell would be
JsonNumber 8 1 or maybe some sort of cast using a typeclass).
#eval (⟨8, 1⟩ : JsonNumber)
If Lean can infer that the type is a JsonNumber then you can write ⟨8, 1⟩ on its own. Pretty cool.

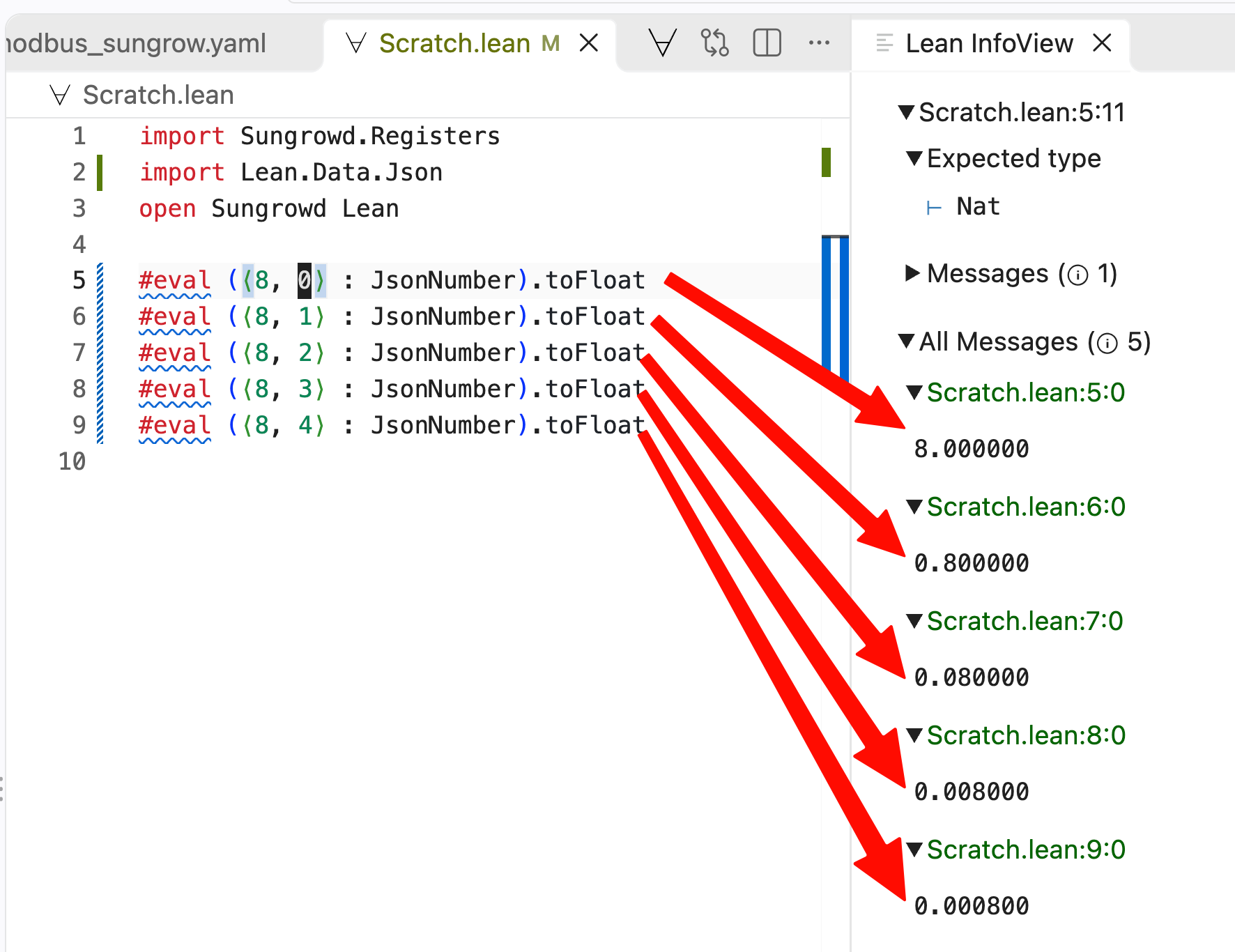

The Info View is convenient for quickly checking how a function behaves (here we see that the exponent is implicitly negative):

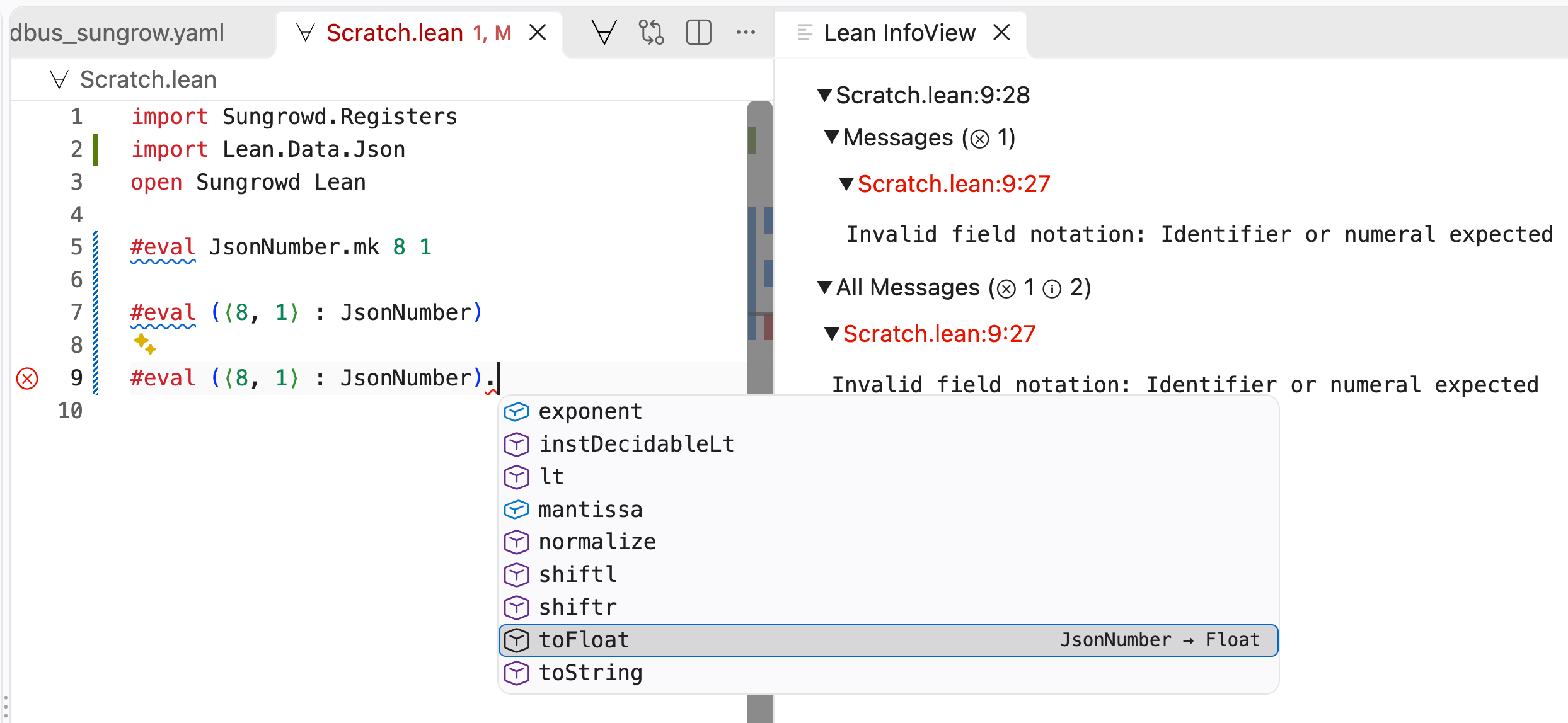

Discovery is also easier than in Haskell as Lean has a dot notation, giving strong Go vibes. Here we have a JsonNumber and want to convert it to a float; we can find the right function quickly. No hunting around for the right library function or typeclass.
Reading the registers Link to heading
Modbus has “input” registers that we can read while “holding” registers are read/write. So naturally this is a sum type:
/-- Modbus has read-only "input" registers and writable "holding" registers. -/
inductive InputType
| input
| holding
deriving BEq, DecidableEq, Hashable, ReprForeshadowing our future Prometheus endpoint, let’s define metrics. The
sensorId refers to an ID in the JSON file while name is a Prometheus metric
name. The metrics defined below are the ones I’ve found useful for managing my
battery system.
inductive MetricKind
| gauge
| counter
deriving Repr, BEq
/-- One exported value: which sensor to read, and how to name and describe it. -/
structure MetricDef where
sensorId : String
name : String
help : String
kind : MetricKind
def metricDefs : Array MetricDef := #[
-- Solar (instantaneous + per-string).
⟨"sg_total_dc_power", "solar_pv_power_watts", "Solar PV generation (total DC power)", .gauge⟩,
⟨"sg_mppt1_voltage", "solar_pv_string1_voltage_volts", "MPPT1 DC string voltage", .gauge⟩,
⟨"sg_mppt1_current", "solar_pv_string1_current_amperes", "MPPT1 DC string current", .gauge⟩,
⟨"sg_mppt2_voltage", "solar_pv_string2_voltage_volts", "MPPT2 DC string voltage", .gauge⟩,
⟨"sg_mppt2_current", "solar_pv_string2_current_amperes", "MPPT2 DC string current", .gauge⟩,
⟨"sg_inverter_temperature", "solar_inverter_temperature_celsius", "Inverter internal temperature", .gauge⟩,
-- Battery.
⟨"sg_battery_power", "solar_battery_power_watts", "Battery power; positive=discharging, negative=charging", .gauge⟩,
⟨"sg_battery_level", "solar_battery_soc_percent", "Battery state of charge", .gauge⟩,
⟨"sg_battery_state_of_health", "solar_battery_soh_percent", "Battery state of health", .gauge⟩,
⟨"sg_battery_voltage", "solar_battery_voltage_volts", "Battery voltage", .gauge⟩,
⟨"sg_battery_temperature", "solar_battery_temperature_celsius", "Battery temperature", .gauge⟩,
-- Grid + load.
⟨"sg_total_active_power", "solar_inverter_ac_power_watts", "Inverter total AC active power", .gauge⟩,
⟨"sg_load_power", "solar_load_power_watts", "Household load power", .gauge⟩,
⟨"sg_grid_frequency", "solar_grid_frequency_hertz", "Grid frequency", .gauge⟩,
-- Grid power.
⟨"sg_battery_export_power_raw", "solar_grid_power_watts", "Grid power; positive=exporting/selling, negative=importing/buying", .gauge⟩,
-- Daily energy (gauges; reset at local midnight).
⟨"sg_daily_pv_generation", "solar_pv_daily_kwh", "PV generation today (resets at local midnight)", .gauge⟩,
⟨"sg_daily_battery_charge", "solar_battery_charge_daily_kwh", "Battery charge energy today", .gauge⟩,
⟨"sg_daily_battery_discharge", "solar_battery_discharge_daily_kwh", "Battery discharge energy today", .gauge⟩,
⟨"sg_daily_battery_charge_from_pv", "solar_battery_charge_from_pv_daily_kwh", "Battery charge sourced from PV today", .gauge⟩,
⟨"sg_daily_direct_energy_consumption", "solar_direct_consumption_daily_kwh", "PV-to-load directly today (bypassing battery)", .gauge⟩,
-- Lifetime energy (counters; monotonic).
⟨"sg_total_pv_generation", "solar_pv_kwh_total", "PV generation lifetime total", .counter⟩,
⟨"sg_total_battery_charge", "solar_battery_charge_kwh_total", "Battery charge energy lifetime total", .counter⟩,
⟨"sg_total_battery_discharge", "solar_battery_discharge_kwh_total", "Battery discharge energy lifetime total", .counter⟩,
⟨"sg_total_battery_charge_from_pv", "solar_battery_charge_from_pv_kwh_total", "Battery charge sourced from PV lifetime total", .counter⟩,
⟨"sg_total_imported_energy", "solar_grid_import_kwh_total", "Energy imported from grid lifetime total", .counter⟩,
⟨"sg_total_exported_energy", "solar_grid_export_kwh_total", "Energy exported to grid lifetime total", .counter⟩,
⟨"sg_total_direct_energy_consumption", "solar_direct_consumption_kwh_total", "PV-to-load directly lifetime total", .counter⟩,
-- State / mode.
⟨"uid_sg_running_state_raw", "solar_running_state", "Inverter running-state bitfield (raw)", .gauge⟩,
⟨"uid_power_flow_status", "solar_power_flow_status", "Power-flow status bitfield (raw)", .gauge⟩
]For testing, here’s a function to read an array of sensors. It reads one sensor at a time; later we will chunk reads into contiguous blocks.
def readAll (host : String) (debug : Bool) (targets : Array (MetricDef × Sensor)) : ExceptT Error Async Unit := do
let addr ← guardIO <| resolve host modbusPort
let deadline := (← IO.monoMsNow) + timeoutMs
let c ← connect addr unitId deadline debug
try
let width := targets.foldl (init := 0) fun w (m, _) => max w m.name.length
for (m, s) in targets do
let value ← match ← readRaw c s with
| none => pure "unavailable"
| some raw => pure s!"{scaled s raw} {s.unit_of_measurement.getD ""}"
IO.println s!"{m.name.pushn ' ' (width - m.name.length)} {value}"
finally
guardIO c.closeMost of this looks fairly standard (to my Haskell eyes) except that
targets.foldl has an explicitly named argument init := 0. I’m also
warming to this style.
The final helper resolves our metrics against the parsed sensor information:
/-- Resolve every metric to its sensor, rejecting anything we cannot decode. -/
def resolveMetrics (byId : HashMap (InputType × String) Sensor) : Except String (Array (MetricDef × Sensor)) := do
let mut out := #[]
for m in metricDefs do
let k : InputType × String := ⟨.input, m.sensorId⟩
let some s := byId[k]?
| throw s!"no sensor {m.sensorId} (needed for {m.name})"
if s.data_type == .string then
throw s!"{m.sensorId} is a string sensor; only numeric sensors are supported"
out := out.push (m, s)
return outWe have surprisingly imperative looking code! The mutable variable
let mut out := #[]
would be an accumulator in Haskell, probably built using foldM or some other
sort of recursion. Again, this reads really nicely.
Given a hub, convert it to a hashmap from InputType × String to Sensor:
def Registers.byId (h : Hub) : Std.HashMap (InputType × String) Sensor :=
h.sensors.foldl (init := {}) fun m s => m.insert ⟨s.input_type, s.unique_id⟩ sAnd finally we can run readAll against our metrics and the live inverter:
def main : IO UInt32 := do
let some host ← IO.getEnv hostEnvVar
| IO.eprintln s!"error: {hostEnvVar} is not set (expected the inverter's IP or hostname)"
return 2
let debug := (← IO.getEnv debugEnvVar).isSome
let registers ← Registers.load registersPath
let some hub := registers.modbus[0]?
| IO.eprintln s!"error: {registersPath}: no modbus hub"
return 2
let targets ← match resolveMetrics (Registers.byId hub) with
| .ok t => pure t
| .error e =>
IO.eprintln s!"error: {registersPath}: {e}"
return 2
match ← (readAll host debug targets).run.block with
| .ok () => return 0
| .error e =>
IO.eprintln s!"error: {e}"
return 1For Haskell readers, the .run.block is roughly runExceptT followed by wait from the async package. The runExceptT unwraps the ExceptT Error layer to give an Either Error (), and wait blocks until the asynchronous computation has finished, so main ends up with a plain IO (Either Error ()) to match on:
result <- wait =<< async (runExceptT (readAll host debug targets))
case result of
Right () -> pure 0
Left e -> hPutStrLn stderr ("error: " ++ show e) >> pure 1
In the repo this monad is abbreviated as M.
Reading real inverter data Link to heading
On a cloudy day in Brisbane:
❯ lake build && .lake/build/bin/sungrowd
Build completed successfully (10 jobs).
solar_pv_power_watts 354 W
solar_pv_string1_voltage_volts 377.7 V
solar_pv_string1_current_amperes 1.0 A
solar_pv_string2_voltage_volts 132.9 V
solar_pv_string2_current_amperes 0.0 A
solar_inverter_temperature_celsius 41.7 °C
solar_battery_power_watts 0 W
solar_battery_soc_percent 56.4 %
solar_battery_soh_percent 99.0 %
solar_battery_voltage_volts 197.2 V
solar_battery_temperature_celsius 24.0 °C
solar_inverter_ac_power_watts 189 W
solar_load_power_watts 189 W
solar_grid_frequency_hertz 50.02 Hz
solar_grid_power_watts 0 W
solar_pv_daily_kwh 10.7 kWh
solar_battery_charge_daily_kwh 7.8 kWh
solar_battery_discharge_daily_kwh 4.3 kWh
solar_battery_charge_from_pv_daily_kwh 1.4 kWh
solar_direct_consumption_daily_kwh 3.3 kWh
solar_pv_kwh_total 1434.1 kWh
solar_battery_charge_kwh_total 1158.9 kWh
solar_battery_discharge_kwh_total 1066.6 kWh
solar_battery_charge_from_pv_kwh_total 451.0 kWh
solar_grid_import_kwh_total 2430.6 kWh
solar_grid_export_kwh_total 274.7 kWh
solar_direct_consumption_kwh_total 729.7 kWh
solar_running_state 0
solar_power_flow_status 3
Nice!
In the next part we will implement chunked reads and a Prometheus endpoint, and test writing to registers (as promised in part 1).
Comment form pending Cloudflare verification...
Loading comments…
